Top-level OPI screenΒΆ

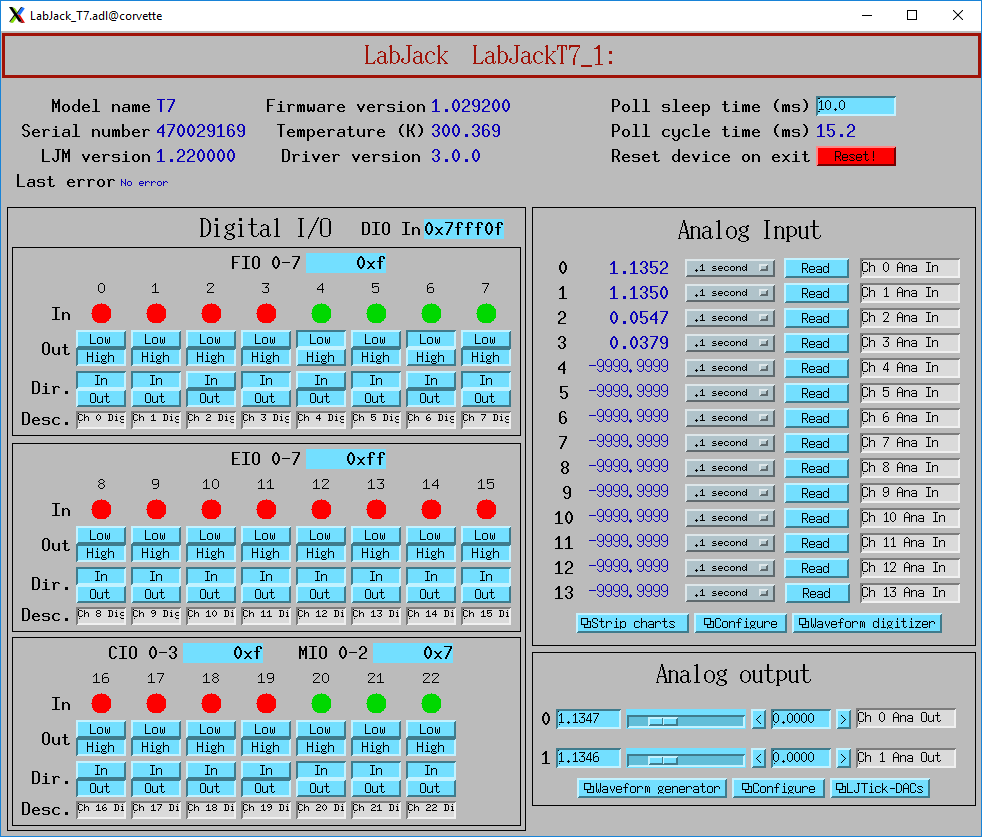

The following it the top-level medm screen for the LabJack T7 and T7-PRO modules.

_images/LabJack_T7.png

LabJack_T7.adl

While this screen is nominally specific to the T7 and T7-PRO, it can be used for any model. On the T8 analog inputs 8-13 do not apply. On the T4 analog inputs 12-13 do not apply, nor do digital I/O bits 20-22.
